1.1460 window profile
Particularly robust, for large door dimensions and strong wind loads.

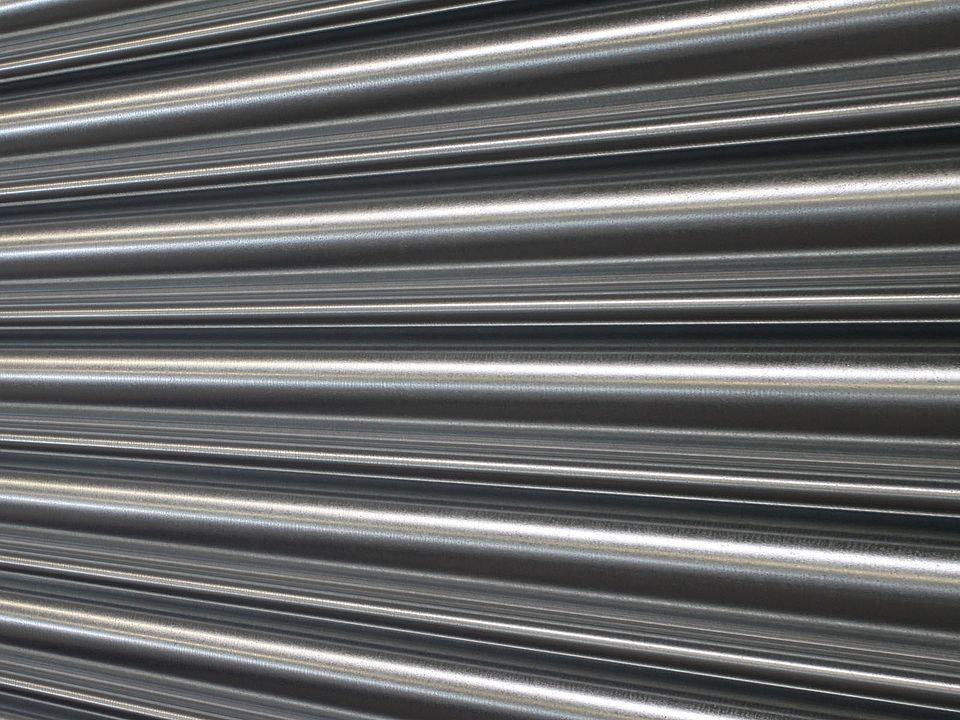

Roller shutter profile 1.1460
Its pronounced stability makes the roller door profile 1.1460 first choice for single wall roller shutter doors with increased loads, e.g. as a result of the large door dimensions or strong wind loads.
1.1460
- number of slats per mtr
- 10,3
- thickness of slats
- 25 mm
- minimum size of tube
- 159 mm
- size of windows [mm]
- 100 x 40
- number of grid cut-outs per mtr
- 6
- fitting bottom rail(s)
- 1.1230, 1.1278
weight at 1,00 per m (m²) [kg]
- steel, stainless steel
- 1,64 (16,9)
- aluminium
- 0,56 (5,77)
thickness of material [mm] | 1,00 | 1,25 | 1,50 | 2,00 |
---|---|---|---|---|
galvanized steel | x | x | x | x |
aluminium, bright | x | x | x | x |
aluminium, plastic coated | x | x | ||
stainless steel | x | x |
max. width [mm] (wind class 2) | 1,00 | 1,25 | 1,50 | 2,00 |
---|---|---|---|---|
galvanized steel | 8400 | 9600 | 10500 | 12000 |
aluminium | 6000 | 6500 | 7500 | 8600 |
