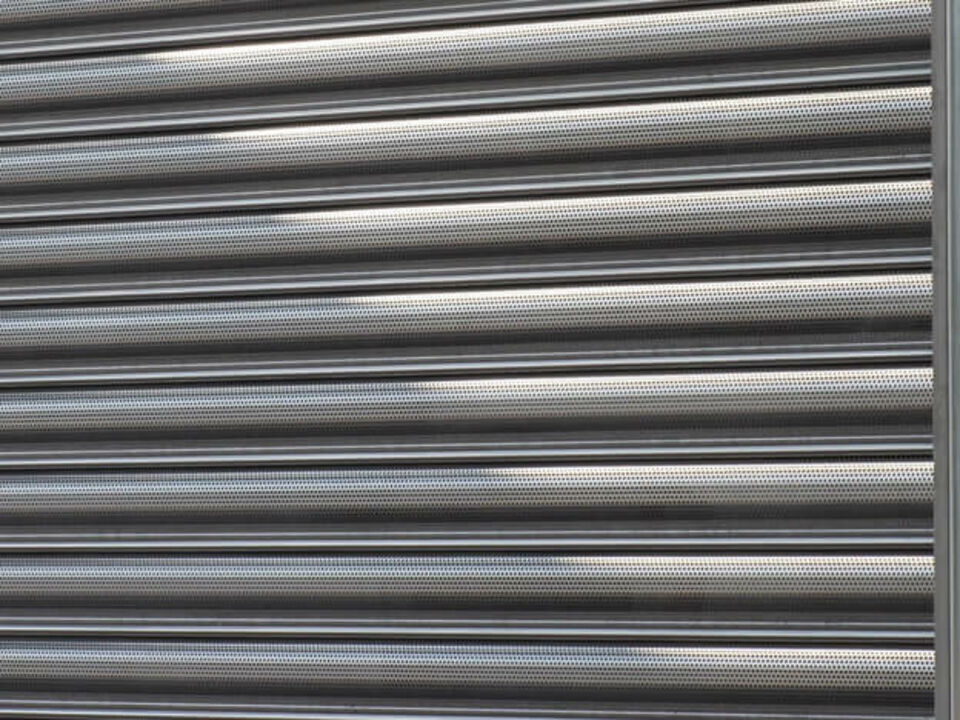

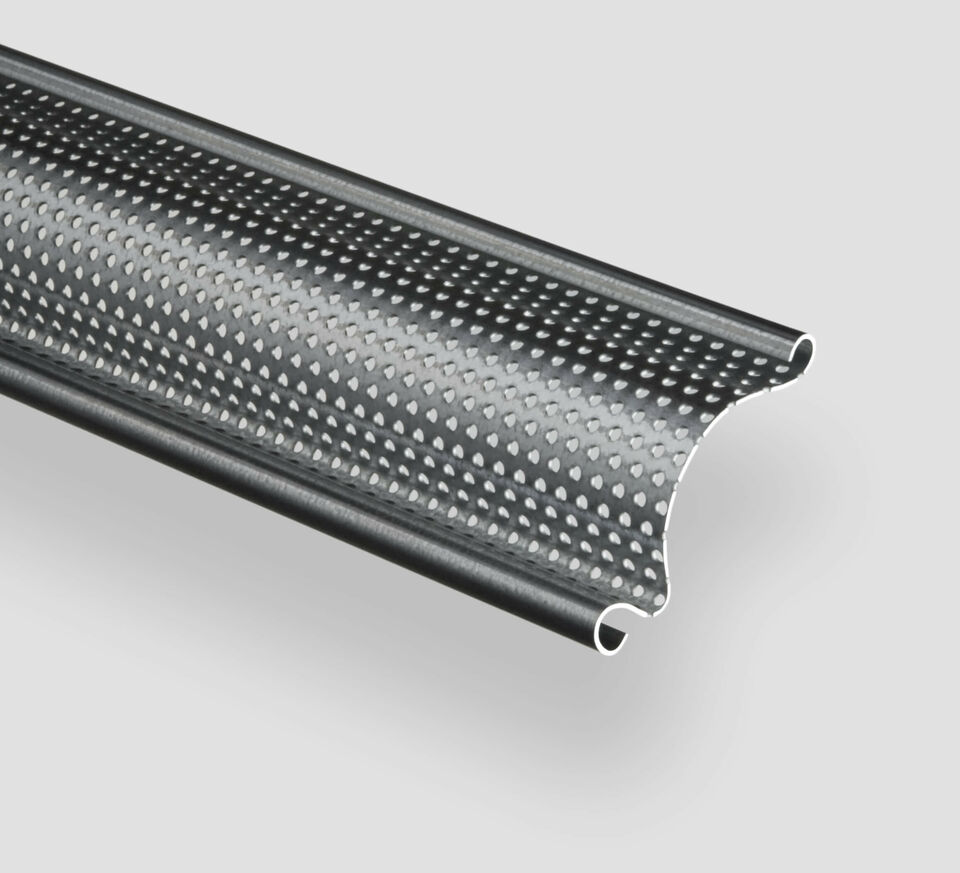

1.144L perforated profile
An uncomplicated single wall profile, designed for use in small- to medium-size roller shutter doors.

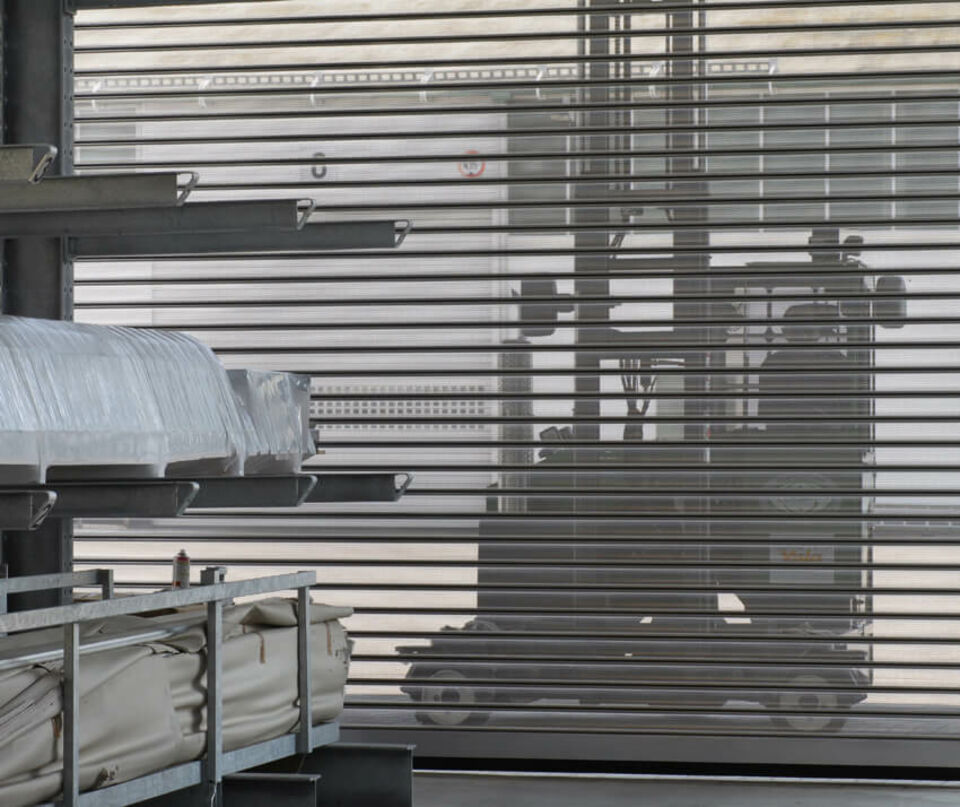

The 1.144L version – as a perforated plate profile – is not only used wherever air permeability is required, but is also outstandingly suited to the protection of objects such as shop windows in which transparency and optical relaxation are also desired in addition to good protection.
1.144L perforated profile
- number of slats per mtr
- 14,5
- thickness of slats
- 19 mm
- minimum size of tube
- 89 mm
- fitting bottom rail(s)
- 1.1210, 1.1240, 1.1268, 1.1288
- air / light passage [%]
- ~ 26 %
weight per m (m²)
- steel, stainless steel 1,00 mm
- 0,85 (12,33)
- aluminium 1,25 mm
- 0,37 (5,37)
| thickness of material [mm] | 1,00 | 1,25 |
|---|---|---|
| galvanized steel | x | |
| aluminium, bright | x | |
| stainless steel | x |
| max. width [mm] (wind class 2) | 1,00 | 1,25 |
|---|---|---|
| steel, stainless steel | 6600 | |
| aluminium | 4900 | |
| steel, with storm hooks | 7500 |
