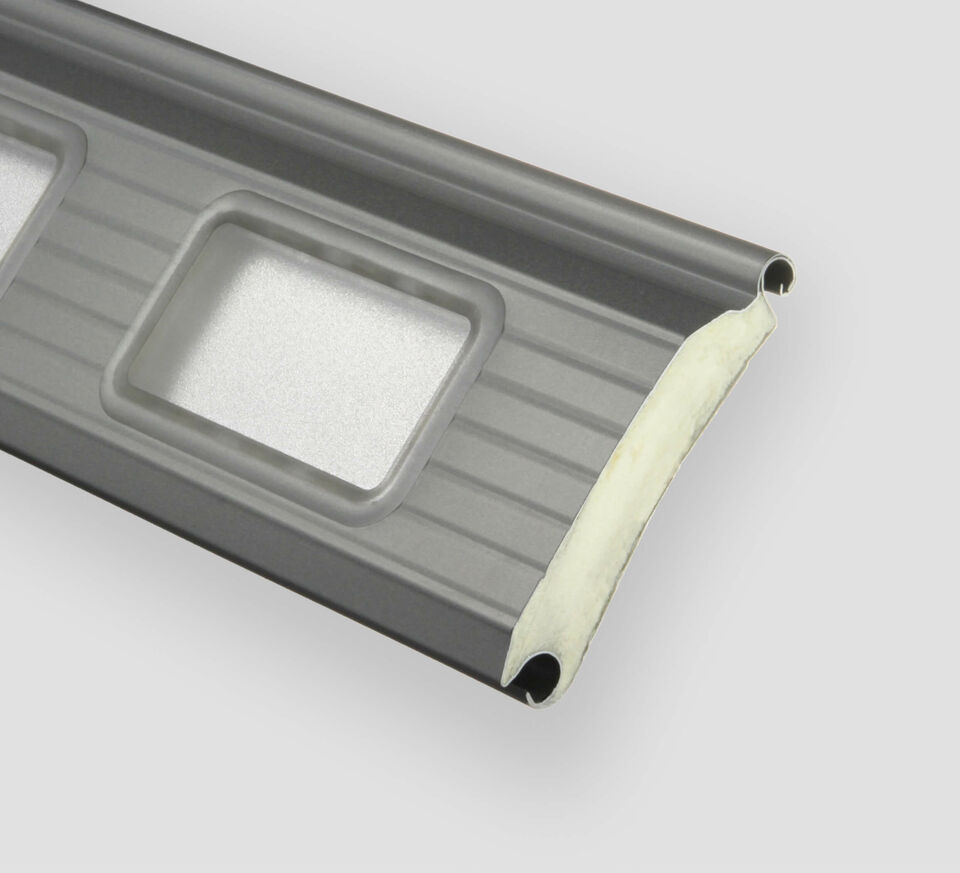

1.95 R roller shutter profile with opaque windows
for light transmission without a view.

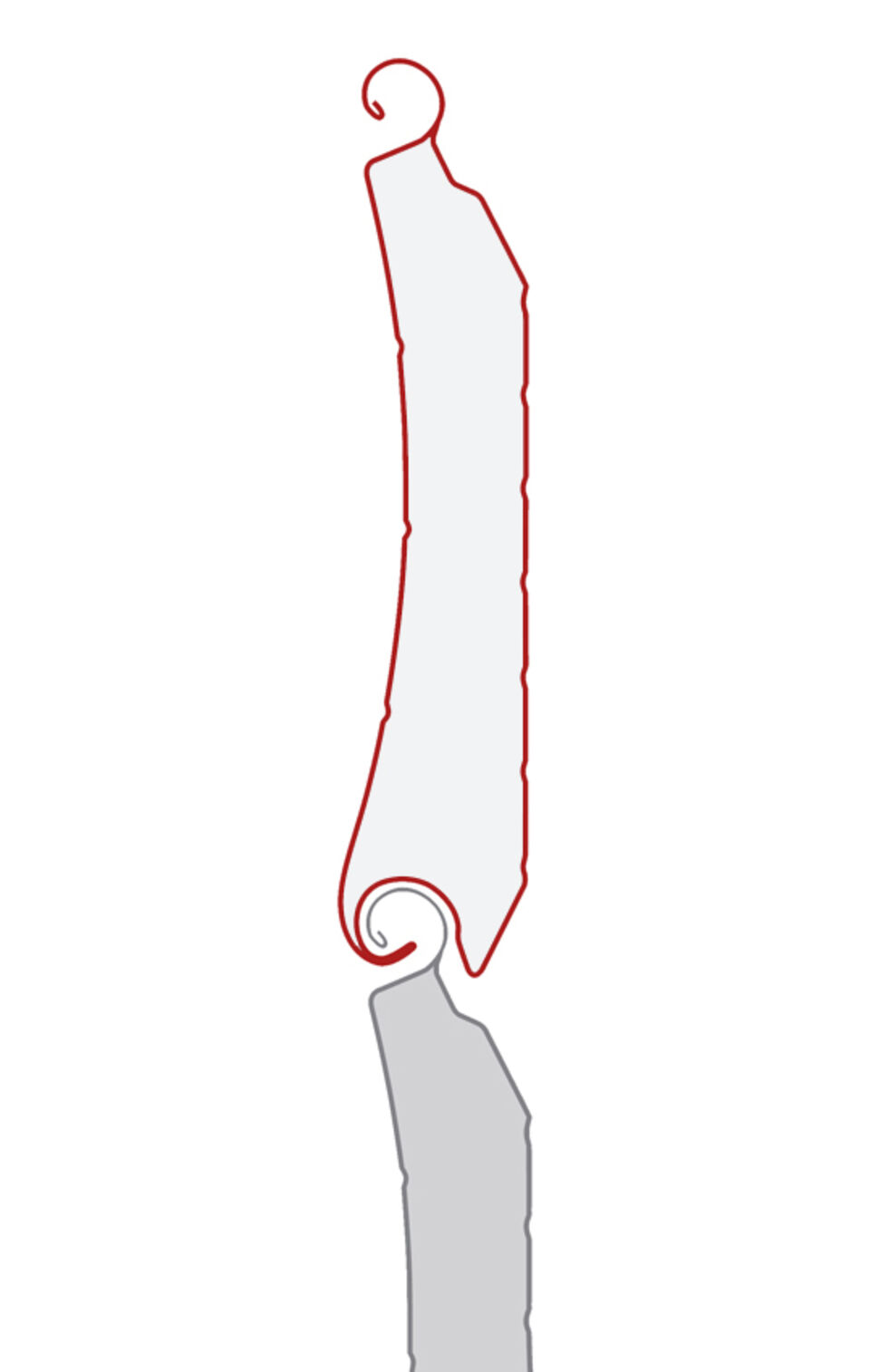

1.95R
1.95 R is an insulated roller shutter profile with the outstanding feature of reduced weight. The standard lath in 0.38 mm galvanized steel with transparent coating is comparable in weight to a 1.100 D aluminium lath.
Thanks to the slightly curved form, this profile moves very qietly.
Available with coloured coating in all RAL-colours or coil coating in colours like RAL 3000, 5010, 6009, 7005, 7016, 7044, 8014, 9002, 9006, 9007 and 9016.
The recommended choice for roller shutter doors especially when low self-weight and small bale diameter are required.
Thermal transmission coefficient (steel) Ust = 3.47 W/(m²*K)
roller door profile 1.95 R window
- number of slats per mtr
- 10,5
- fitting bottom rail(s)
- 1.1295, 1.1200
- minimum size of tube
- 133 mm
- size of windows [mm]
- 100 x 50 mm
- number of grid cut-outs per mtr
- 6
- thickness of slats
- 23mm
weight per m (m²) in kg at 0,40/0,50 mm
- galvanized steel, plastic coated
- 1,01 (10,6)
thickness of material [mm]
- steel
- 0,40
