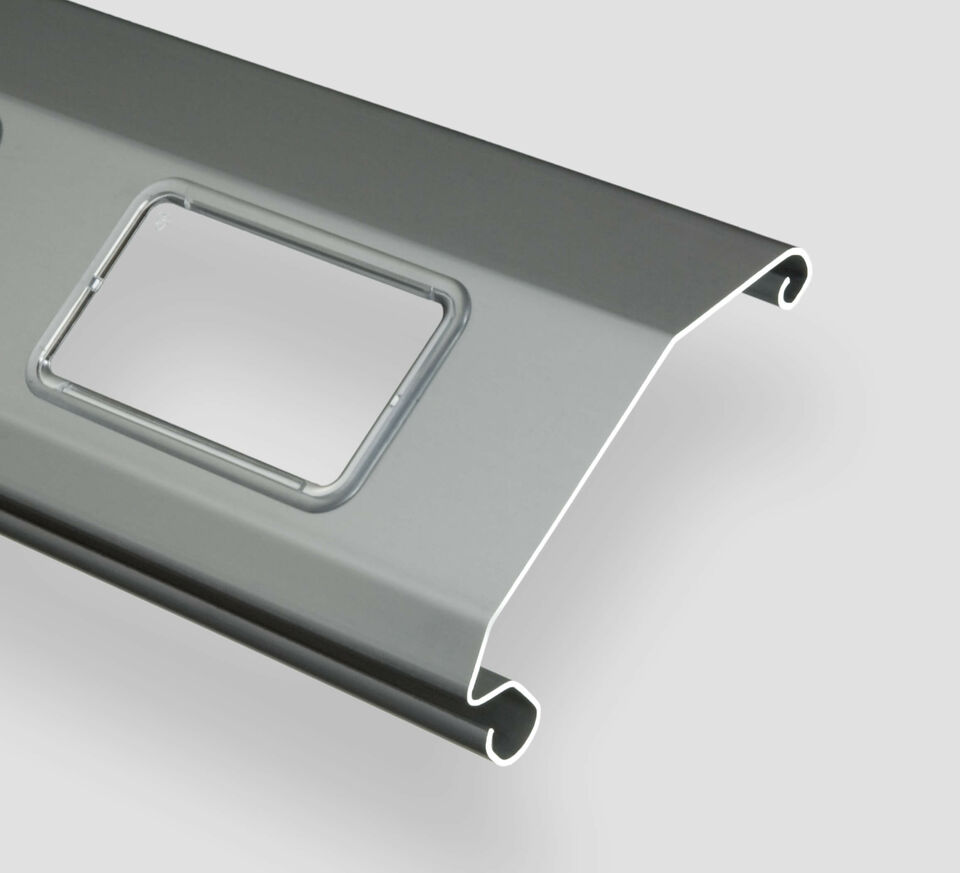

1.1590 window profile
preferred for wide roller shutters - even under special conditions such as permafrost and increased wind loads.
1.1590

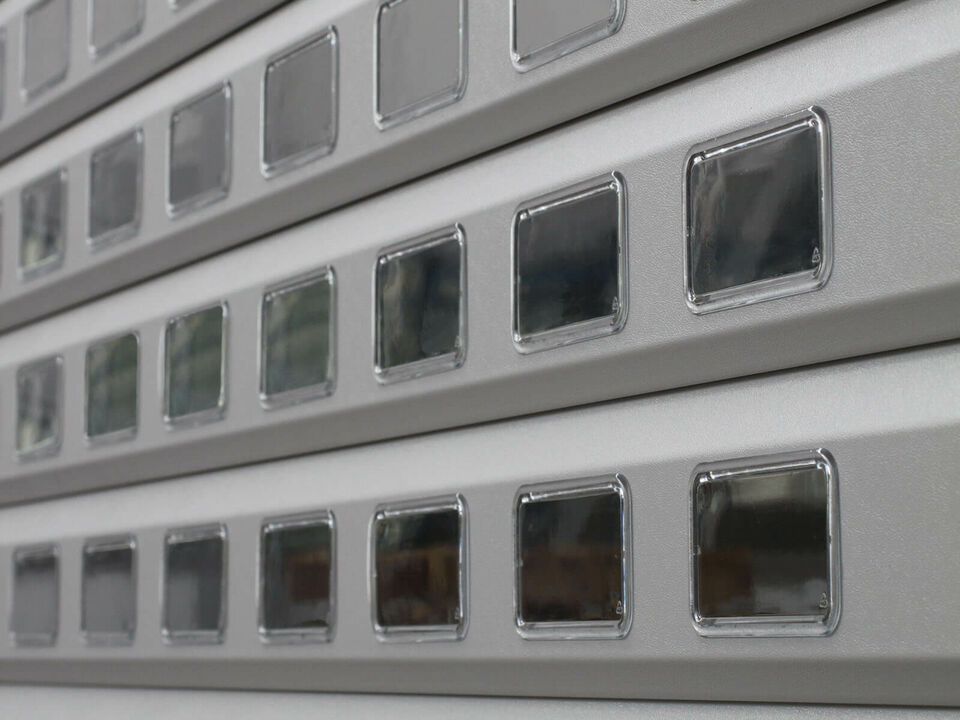

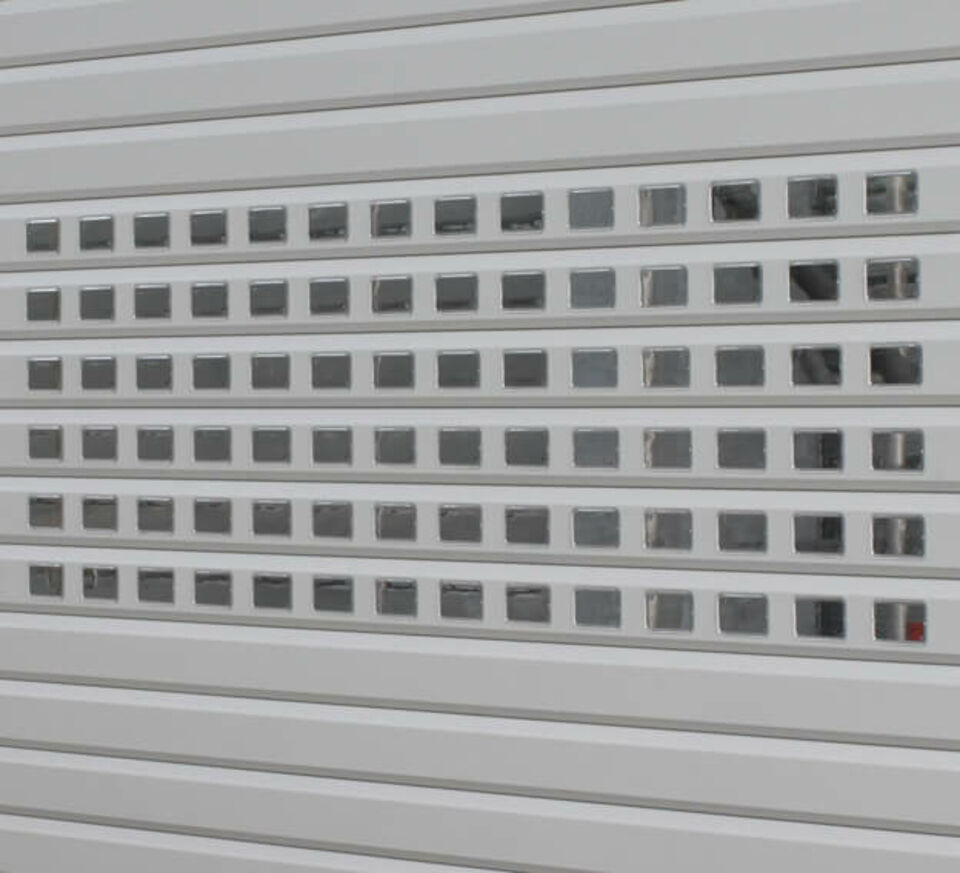

Due to its sturdiness and size, the roller door section 1.1590 is preferred for wide roller doors.
It was designed to ensure that the eye was covered when it was closed so that no water can penetrate. As a result, it is suitable for use in extreme weather situations such as for roller doors which are supposed to remain mobile even in the face of severe frost.
When the roller door closes, the overlapping undersides of the sections cover the section beneath them, creating additional stability.
1.1590
- number of slats per mtr
- 9
- thickness of slats
- 32 mm
- minimum size of tube
- 159 mm
- fitting bottom rail(s)
- 1.1220, 1.1299
- size of windows [mm]
- 100 x 55
- number of grid cut-outs per mtr
- 6
- air / light passage [%]
- 30
weight per m (m²) at 1,00 mm
- galvanized steel
- 1,44 (12,96)
- aluminium
- 0,56 (5,04)
| thickness of material [mm] | 1,00 | 1,25 |
|---|---|---|
| galvanized steel | x | x |
| galvanized steel, plastic coated | x | |
| aluminium, bright | x | x |
| aluminium, plastic coated | x | |
| stainless steel |
