1.100 R window profile
a variant of our classic 1.100 D with a curved inner shell.

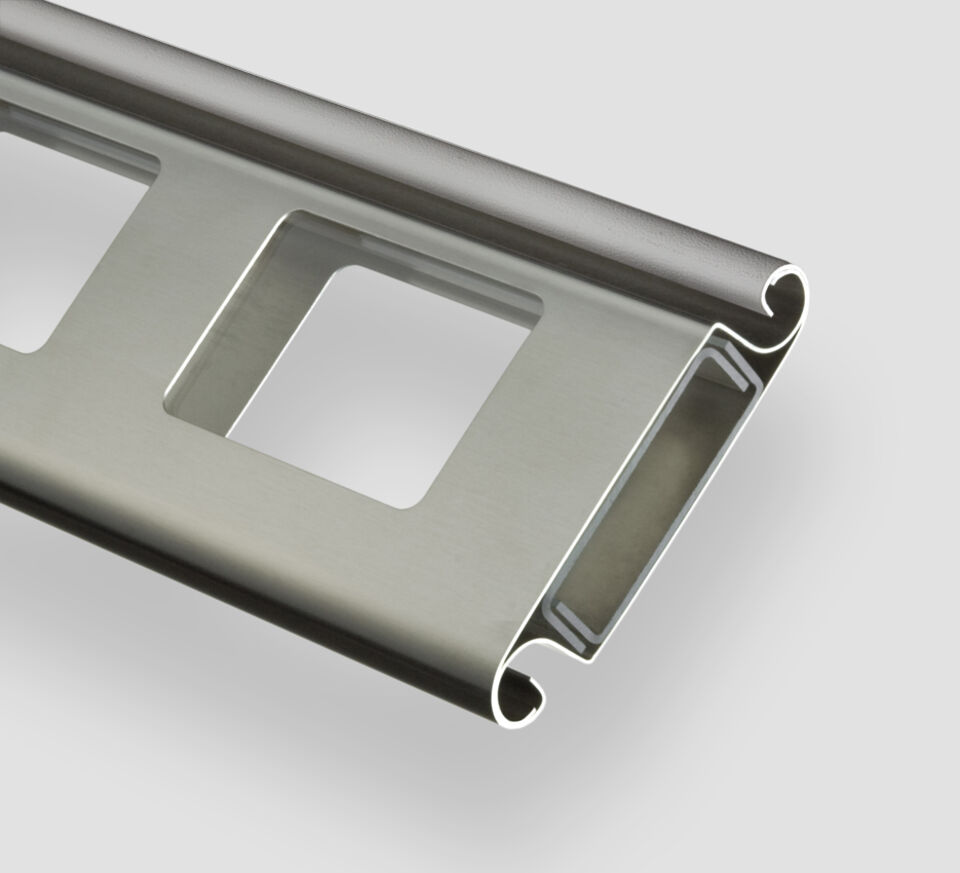

Roller shutter profile 1.100 R
The roller shutter door profile 1.100 R with windows.
For reasons of noise reduction, the inner shell of the aluminium version is provided with a film coating as standard.
The outer shell can be supplied with coil or plastic coating upon request. Powder coating is possible in all RAL colours on the RAL 840 HR card.
profile 1.100 R window
- number of slats per mtr
- 10
- thickness of slats
- 23 mm
- minimum size of tube
- 133 mm
- fitting bottom rail(s)
- 1.1278, 1.1230, 1.123N
weight per m² at 1,00 mm in kg
- galvanized steel, plastic coated
- 25,6
- aluminium, plastic coated
- 9,8
| thickness of material [mm] | 0,8/1,0 mm |
|---|---|
| galvanized steel, plastic coated | x |
| aluminium, plastic coated | x |
| max. width [mm] (wind class 2) | 0,8/1,0 mm |
|---|---|
| galvanized steel | 9200 |
| aluminium | 6700 |
