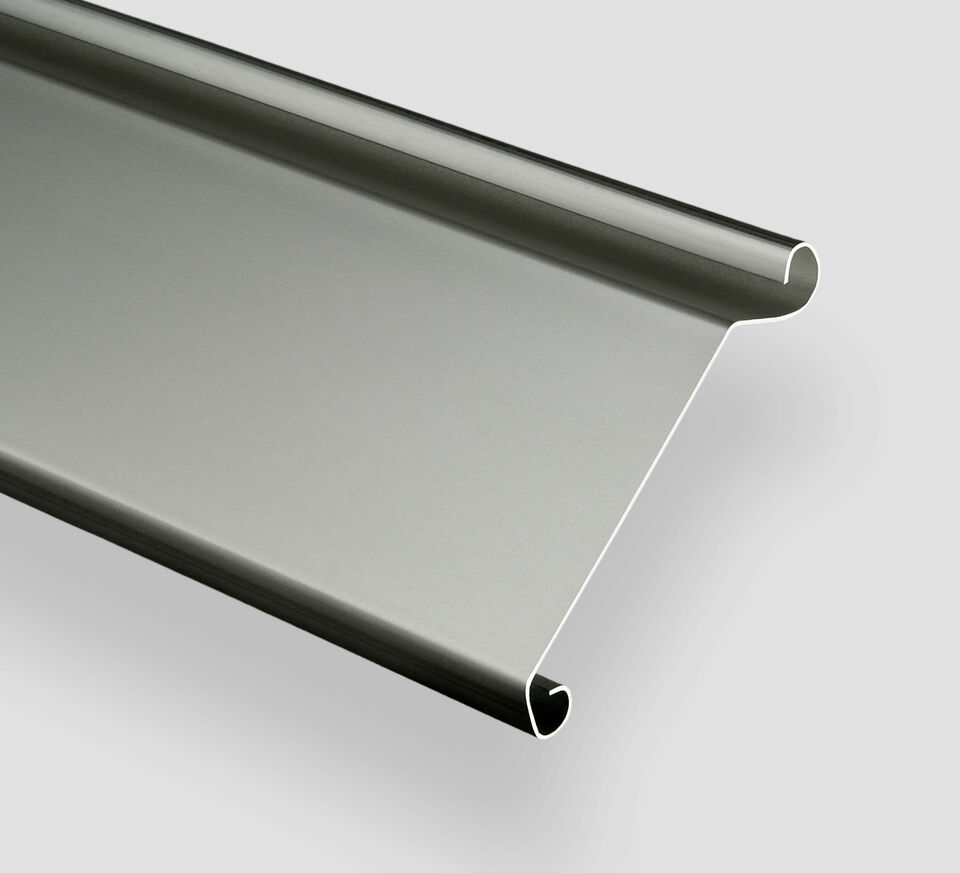

Roller shutter profile 1.1560
Clear lines, large cut-outs.
1.1560
1.1560 is a profile for single wall roller doors, which as a result of the covering width of 100 mm and its smooth appearance resembles the tried-and-tested 1.100 D roller shutter profile.
Thanks to its large perforations, it achieves light permeability of 42% as a window and grille section, and is a popular choice for protecting objects such as shop window facades due to good transparency and protection.
1.1560
- number of slats per mtr
- 10
- thickness of slats
- 19 mm
- minimum size of tube
- 159 mm
- fitting bottom rail(s)
- 1.1220, 1.1278
weight per m (m²) at 1,00 mm
- galvanized steel
- 1,37 (13,7)
- aluminium
- 0,47 (4,7)
thickness of material [mm] | 1,00 | 1,25 | 1,50 |
---|---|---|---|
galvanized steel | x | x | x |
aluminium, bright | x | x | x |
aluminium, plastic coated | x | x | |
stainless steel | x | x |
max. width [mm] (wind class 2) | 1,00 | 1,25 | 1,50 |
---|---|---|---|
steel, stainless steel | 7000 | 7600 | 8200 |
aluminium | 5200 | 5600 | 6100 |
max. width [mm] (wind class 2) with storm hooks | 1,00 | 1,25 | 1,50 |
---|---|---|---|
steel, stainless steel | 8000 | 9000 | 10000 |
aluminium | 6500 | 7500 | 8500 |
