Roller shutter profile 1.100 R
Double-walled, PU-foamed and with a curved inner shell.
1.100R

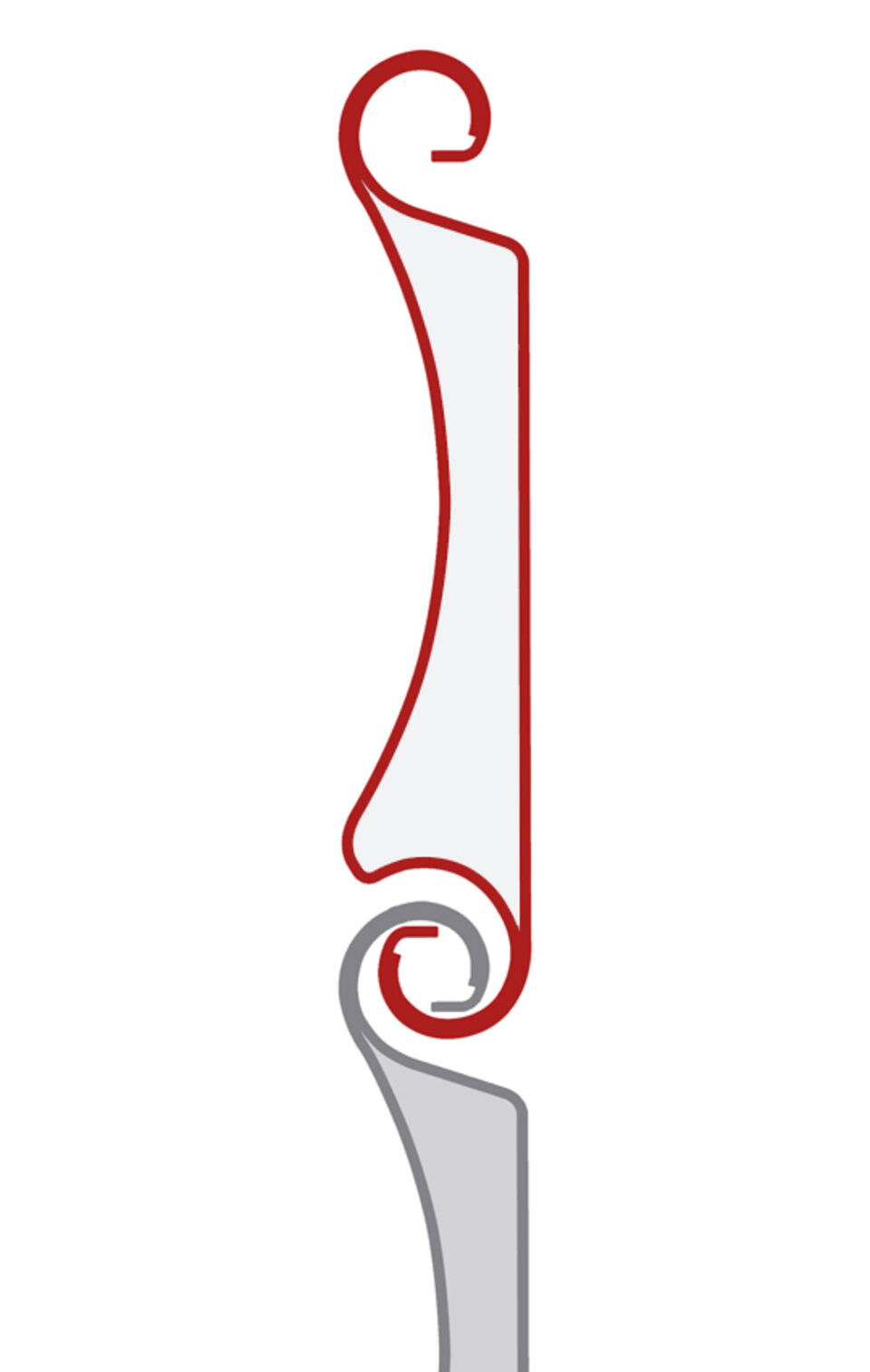

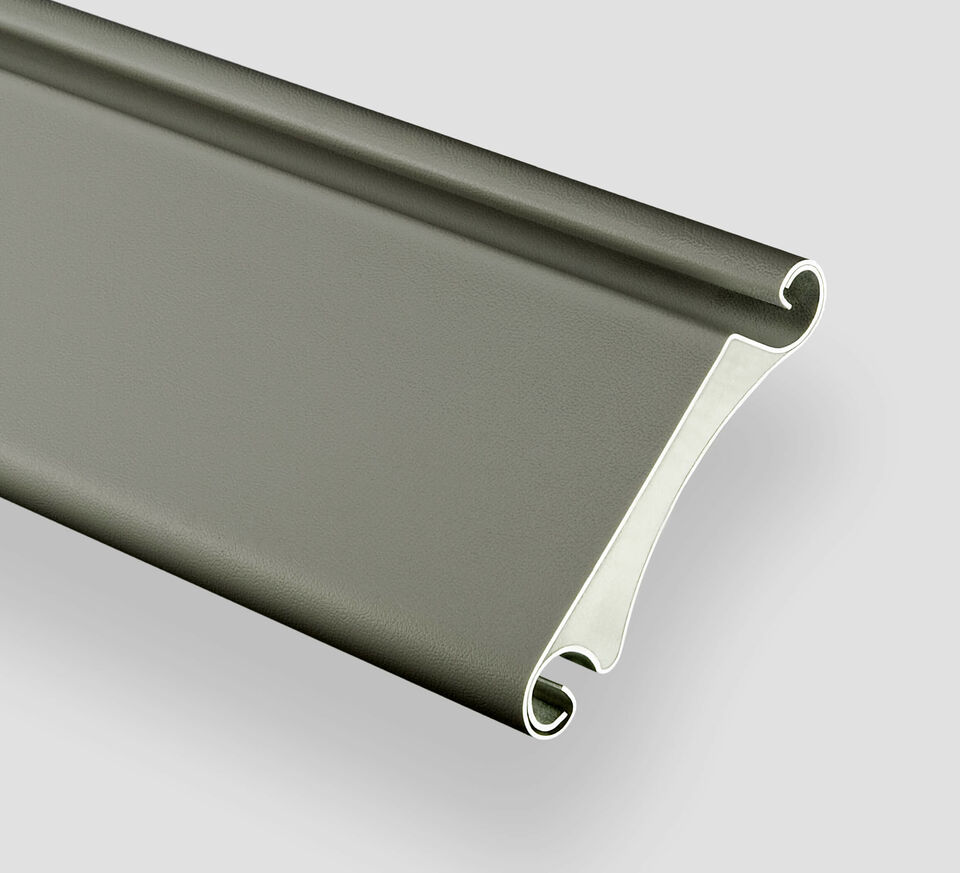

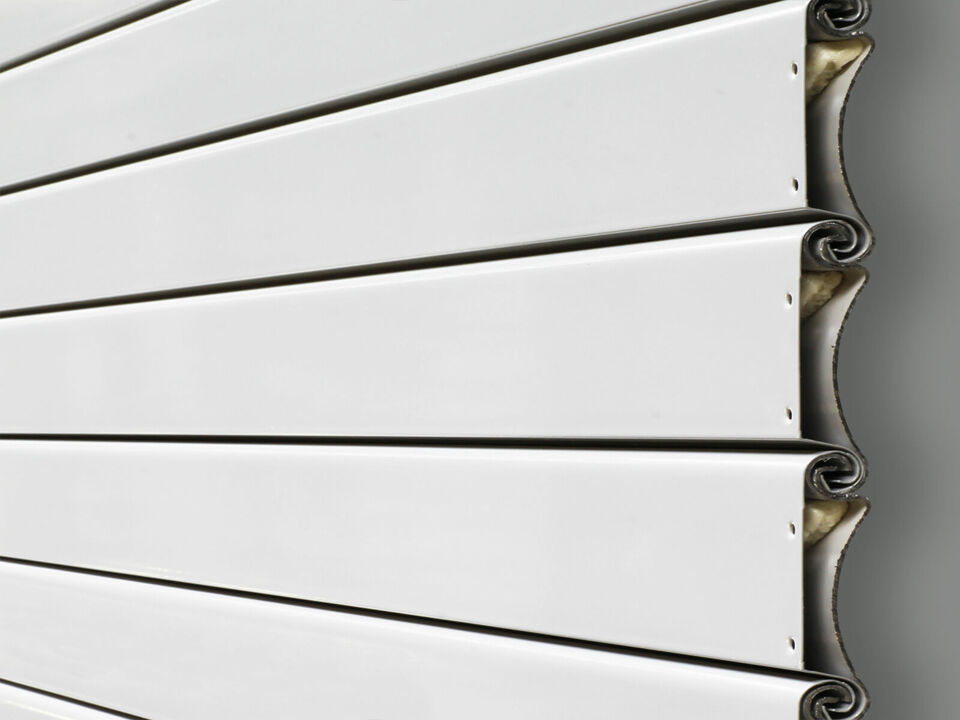

The roller shutter profile 1.100 R is a variant of the proven 1.100 D profile with a curved inner shell.
The curve allows more compact bale dimensions and contributes to a reduction of running noise when winding the shutter.
For additional noise reduction, the inner shell of the aluminium version is provided with a film coating as standard.
The outer shell can be supplied with coil or plastic coating upon request. Powder coating is possible in all RAL colours on the RAL 840 HR card.
1.100 R
- number of slats per mtr
- 10
- thickness of slats
- 23 mm
- minimum size of tube
- 133 mm
- fitting bottom rail(s)
- 1.1278, 1.1230
weight per m² at 1,00 mm in kg
- galvanized steel
- 25,6
- aluminium
- 9,8
| thickness of material [mm] | 0,8/1,0 mm | 0,8 / 0,8 mm |
|---|---|---|
| galvanized steel | x | x |
| aluminium, plastic coated | x | x |
| max. width [mm] (wind class 2) | 0,8/0,8 mm | 0,8/1,0 mm |
|---|---|---|
| galvanized steel | 8400 | 9200 |
| aluminium | 6200 | 6700 |
| max. width [mm] (wind class 2) with storm hooks | 0,8/0,8 mm | 0,8/1,0 mm |
|---|---|---|
| steel, stainless steel | 8400 | 9200 |
| aluminium | 6200 | 6700 |
