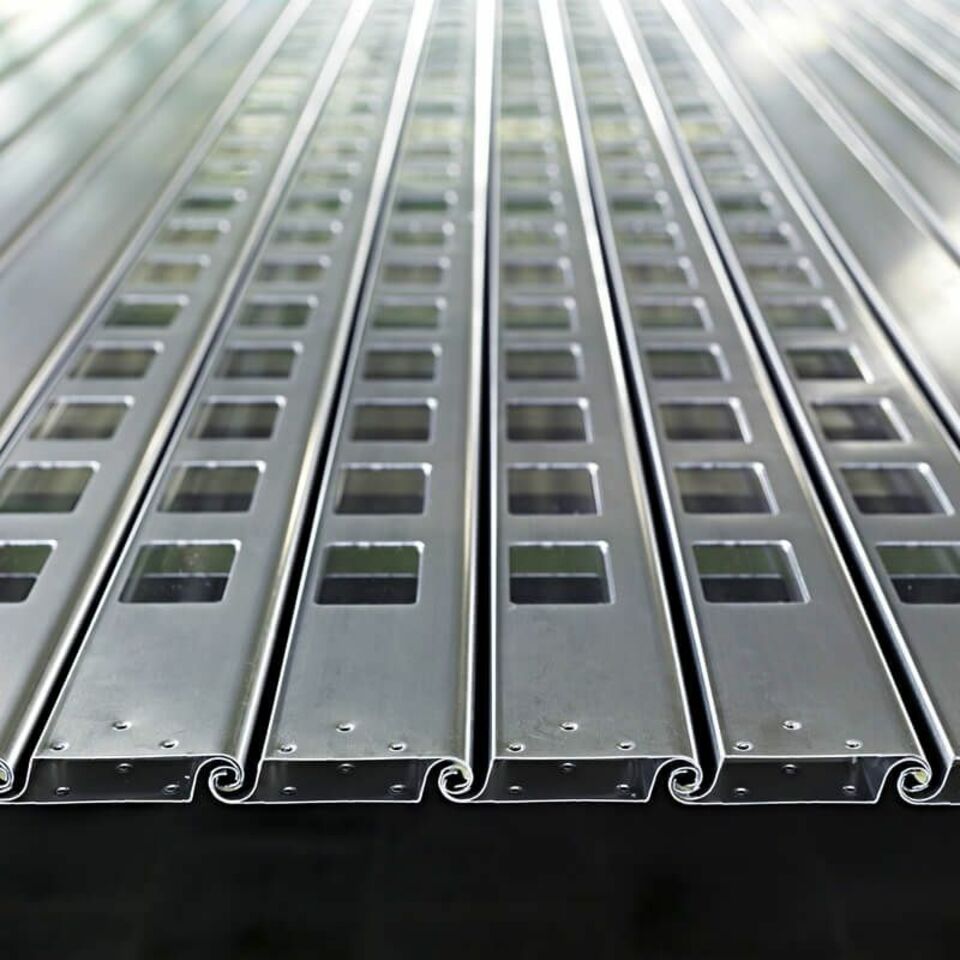

1.100 D window profile
Our classic, also suitable for very large roller doors and special challenges. As a window profile also with a view.
1.100 D
The great stability, clear lines and a variety of versions make the 1.100 D roller door profile a popular classic.
Specialties include a suitable sealing lip profile, tests for sound and thermal insulation and gunfire protection for certain models and certification as a terrorism-protection roller door for one special model.
Also available with coloured coating in all RAL-colours, with plastic coating like RAL 9002 (aluminium 0.80 mm, 1.00 mm und 1.25 mm) and with coil coating like RAL 3000, 5010, 7016, 8017, 9006, 9016 (aluminium 1.00 mm).
roller door profile 1.100 D window
- thickness of slats
- 23mm
- fitting bottom rail(s)
- 1.1278, 1.1230, 1.123N
- minimum size of tube
- 159 mm
- number of grid cut-outs per mtr
- 8
- size of windows [mm]
- 80 x 55
- number of slats per mtr
- 10
weight per m (m²) in kg at 1,00 mm
- steel, stainless steel
- 2,75 (27,5)
- aluminium
- 1,18 (11,8)
| thickness of material [mm] | 0,63 | 0,80 | 1,00 | 1,25 | 1,50 |
|---|---|---|---|---|---|
| steel | x | x | x | x | x |
| galvanized steel, plastic coated | x | x | |||
| aluminium | x | x | x | x | |
| aluminium, plastic coated | x | x | x | ||
| stainless steel | x | x |
