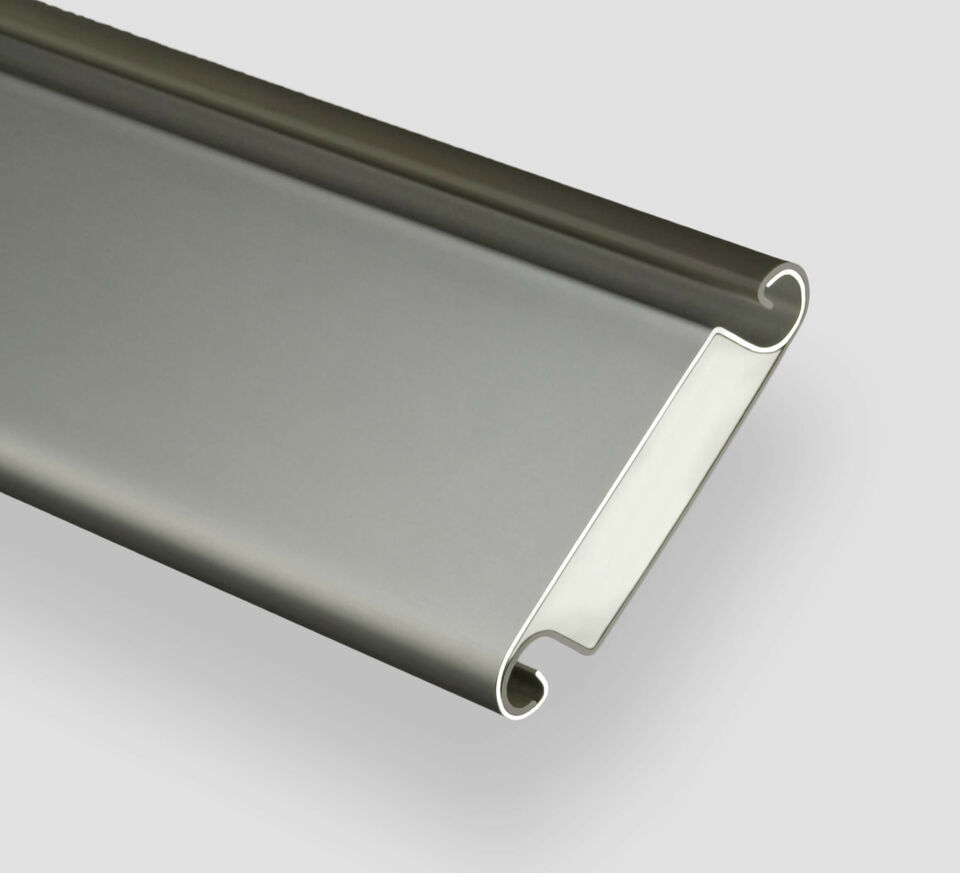

Roller shutter profile IsoPlus
Your plus for the thermal insulation.
IsoPlus

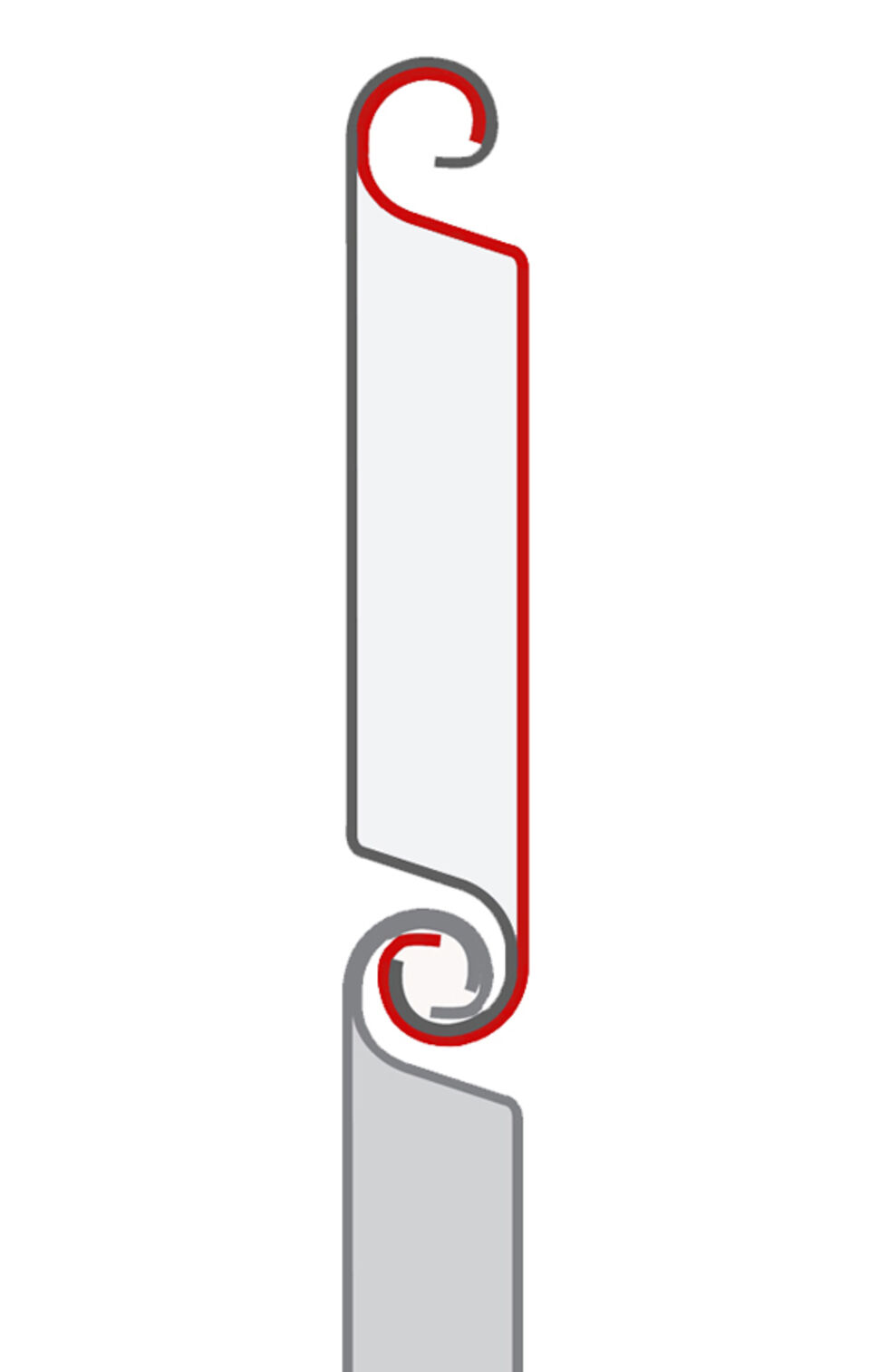

A clear improvement in thermal insulation compared to our 1.100D section is achieved in the IsoPlus section type through the use of a hard PVC inner shell, especially through thermal separation between inside and outside in the area of the section eyes.
The heat transmission coefficient (design in 1.00 mm steel, plasic coil coated on one side, with polystyrene foam filling) according to DIN 52612 is K = 2.5 W/(m²*K)
The resistant hard PVC inner shell in addition also contributes to further improved running qualities and clearly reduces running noises when opening and closing the roller door.
IsoPlus
- number of slats per mtr
- 10
- thickness of slats
- 23 mm
- minimum size of tube
- 159 mm
- fitting bottom rail(s)
- 1.1278, 1.1230, 1.123N
weight per m (m²) in kg at 1,00 mm polystyrene
- steel, stainless steel
- 1,80 (18,0)
- aluminium
- 0,90 (9,0)
| thickness of material [mm] | 1,00 | 1,25 |
|---|---|---|
| steel | x | x |
| galvanized steel, plastic coated | x | x |
| aluminium | x | x |
| aluminium, plastic coated | x | x |
| stainless steel | x |
| max. width [mm] (wind class 2) | 1,00 | 1,25 |
|---|---|---|
| steel, stainless steel | 7400 | 8300 |
| aluminium | 5500 | 6500 |
