Roller shutter profile 1.95 R

The economical solution for lightweight, heat-insulating roller shutter doors.

1.95R

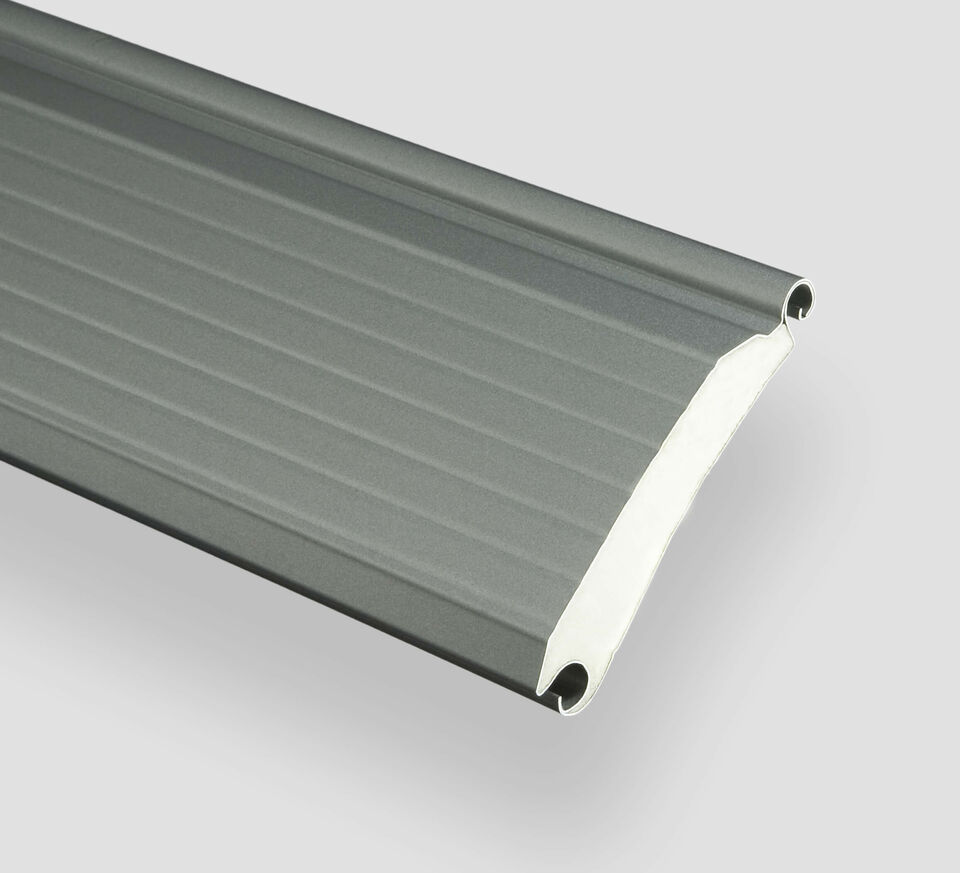

1.95 R is an insulated roller shutter profile with the outstanding feature of reduced weight. The standard lath in 0.38 mm galvanized steel with transparent coating is comparable in weight to a 1.100 D aluminium lath.
Thanks to the slightly curved form, this profile moves very qietly.

Available with coloured coating in all RAL-colours or coil coating in colours like RAL 3000, 5010, 6009, 7005, 7016, 7044, 8014, 9002, 9006, 9007 and 9016.

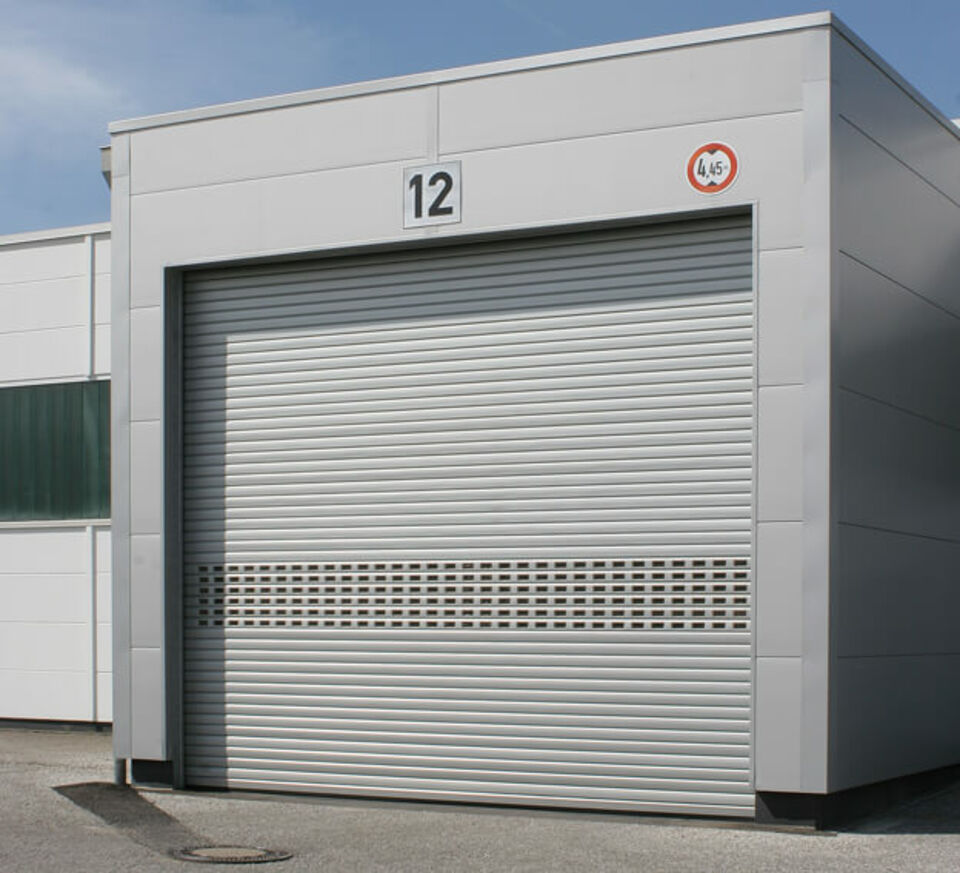

The recommended choice for roller shutter doors especially when low self-weight and small bale diameter are required.

Thermal transmission coefficient (steel) Ust = 3.47 W/(m²*K)

roller door profile 1.95 R

number of slats per mtr
10.1
thickness of slats
23 mm
minimum size of tube
133 mm
fitting bottom rail(s)
1.1295, 1.1200, 1.1205

weight per m (m²) [kg]

steel
0.93 (9.8)

thickness of material [mm]

steel
0.40

max. width [mm] (wind class 2)

steel
6500
steel, with storm hooks
8000

Thermal transmission coefficient (steel)

thermal transmission coefficient
3.47 W/m²K
